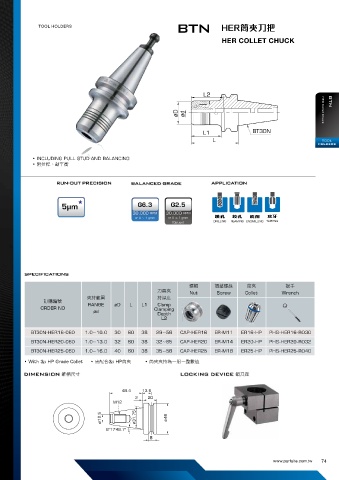

Page 75 - 普慧2020主軸(電子書)

TOOL HOLDERS BTN HER筒夾刀把

PFK COLLET CHUCK HER COLLET CHUCK

BTN

HER Collet Chuck

TOOL
HOLDERS

• INCLUDING PULL STUD AND BALANCING
• 附拉桿、動平衡

RUN-OUT PRECISION BALANCED GRADE APPLICATION

5µm G6.3 G2.5
30,000 RPM 30,000 RPM
or U ≤ 1 gmm or U ≤ 1 gmm
(Option)

SPECIFICATIONS
螺帽 調整螺絲 筒夾 扳手
刀具夾 Nut Screw Collet Wrench
夾持範圍 持深度
訂購編號 RANGE øD L L1 Clamp
ORDER NO Clamping
ød Depth
L2

BT30N-HER16-060 1.0~10.0 30 60 38 29~58 CAP-HER16 ER-M11 ER16-HP PHS-HER16-RO30
BT30N-HER20-060 1.0~13.0 32 60 38 32~65 CAP-HER20 ER-M14 ER20-HP PHS-HER20-RO32
BT30N-HER25-060 1.0~16.0 40 60 38 35~58 CAP-HER25 ER-M18 ER25-HP PHS-HER25-RO40

• With 3µ HP Grade Collet • 需配合3µ HP筒夾 • 筒夾夾持為一對一整數值

DIMENSION 錐柄尺寸 LOCKING DEVICE 鎖刀座

www.parfaite.com.tw 74
