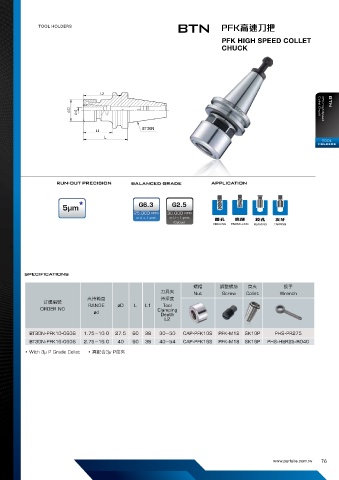

TOOL HOLDERS BTN PFK高速刀把

ER COLLET CHUCK PFK HIGH SPEED COLLET
CHUCK

L2

ø D ø d Collet Chuck PFK High Speed BTN

BT30N
L1
L
TOOL
HOLDERS

RUN-OUT PRECISION BALANCED GRADE APPLICATION

5µm G6.3 G2.5
25,000 RPM 30,000 RPM
or U ≤ 1 gmm or U ≤ 1 gmm
(Option)

SPECIFICATIONS
螺帽 調整螺絲 筒夾 扳手
刀具夾 Nut Screw Collet Wrench
夾持範圍 持深度
訂購編號
RANGE øD L L1 Tool
ORDER NO Clamping
ød
Depth
L2
BT30N-PFK10-060S 1.75~10.0 27.5 60 38 30~50 CAP-PFK10S PFK-M12 SK10P PHS-PR275
BT30N-PFK16-060S 2.75~16.0 40 60 38 40~54 CAP-PFK16S PFK-M18 SK16P PHS-HER25-RO40

• With 3µ P Grade Collet • 需配合3µ P筒夾
