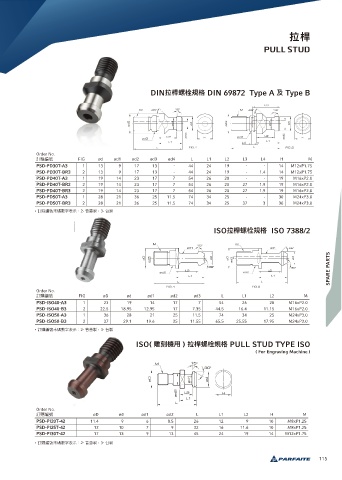

Page 117 - 2021刀把目錄

೉䫱

PULL STUD

DIN೉䫱ᣪ礡憒໒ DIN 69872 Type A 现 Type B

Order No.
懪搳翥蒈 FIG ød ød1 ød2 ød3 ød4 L L1 L2 L3 L4 H M
PSD-PD30T-A3 1 13 9 17 13 - 44 24 19 - - 14 M12xP1.75
PSD-PD30T-BR3 2 13 9 17 13 - 44 24 19 - 1.4 14 M12xP1.75
PSD-PD40T-A3 1 19 14 23 17 7 54 26 20 - - 19 M16xP2.0
PSD-PD40T-BR2 2 19 14 23 17 7 54 26 20 27 1.9 19 M16xP2.0
PSD-PD40T-BR3 2 19 14 23 17 7 54 26 20 27 1.9 19 M16xP2.0
PSD-PD50T-A3 1 28 21 36 25 11.5 74 34 25 - - 30 M24xP3.0
PSD-PD50T-BR3 2 28 21 36 25 11.5 74 34 25 37 3 30 M24xP3.0
• 懪搳翥蒈๛嘨碍ਁ蔭纈物2- ฦ眻蕣牧3- ݣ蕣

ISO೉䫱ᣪ礡憒໒ ISO 7388/2

SPARE PARTS

Order No.
懪搳翥蒈 FIG øD ød ød1 ød2 ød3 L L1 L2 M
PSD-ISO40-A3 1 23 19 14 17 7 54 26 20 M16xP2.0
PSD-ISO40-B3 2 22.5 18.95 12.95 17 7.35 44.5 16.4 11.15 M16xP2.0
PSD-ISO50-A3 1 36 28 21 25 11.5 74 34 25 M24xP3.0
PSD-ISO50-B3 2 37 29.1 19.6 25 11.55 65.5 25.55 17.95 M24xP3.0
• 懪搳翥蒈๛嘨碍ਁ蔭纈物2- ฦ眻蕣牧3- ݣ蕣

ISO( 褺ڰ秚አ ) ೉䫱ᣪ礡憒໒ PULL STUD TYPE ISO
( For Engraving Machine )

Order No.
懪搳翥蒈 øD ød ød1 ød2 L L1 L2 H M
PSD-PI20T-42 11.4 9 6 8.5 26 12 9 10 M8xP1.25
PSD-PI25T-42 12 10 7 9 32 16 11.6 10 M8xP1.25
PSD-PI30T-42 17 13 9 13 45 24 19 14 M12xP1.75
• 懪搳翥蒈๛嘨碍ਁ蔭纈物2- ฦ眻蕣牧3- ݣ蕣
