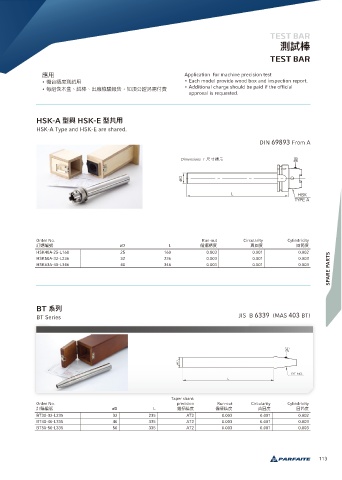

TEST BAR
介手༉

TEST BAR

䛑አ Application for machine precision test
• 秚ݣ羊ଶ介手አ • Each model provide wood box and inspection report.
• ྯ奲珀๙ፋ牏手༉牏ڊ皜䲒涢䁭ޞ牧ই殾獍挨ݚ襑՞揲 • Additional charge should be paid if the official
approval is requested.

HSK-A ࣳ膏 HSK-E ࣳوአ
HSK-A Type and HSK-E are shared.

DIN 69893 From A

Dimensions / 疳ੑ秂纈

Order No. Run-out Circularity Cylindricity
懪搳翥蒈 øD L 狳硎羊ଶ ፥㾼ଶ 㾼ᒻଶ
HSK40A-25-L160 25 160 0.003 0.001 0.002
SPARE PARTS
HSK50A-32-L236 32 236 0.003 0.001 0.003
HSK63A-40-L346 40 346 0.003 0.001 0.003

BT 羬ڜ
BT Series JIS B 6339 (MAS 403 BT)

Taper shank
Order No. precision Run-out Circularity Cylindricity
懪搳翥蒈 øD L 桫ຢ羊ଶ 狳硎羊ଶ ፥㾼ଶ 㾼ᒻଶ
BT30-32-L235 32 235 AT2 0.003 0.001 0.002
BT40-40-L335 40 335 AT2 0.003 0.001 0.003
BT50-50-L335 50 335 AT2 0.003 0.001 0.003
