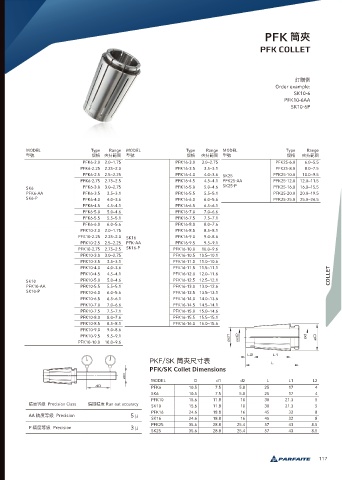

Page 119 - 2021刀把目錄

COLLET PFK ᒻ䄸

PFK COLLET

懪搳ֺ
Order example:
SK10-6
PFK10-6AA
SK10-6P

MODEL Type Range MODEL Type Range MODEL Type Range
ࣳ蒈 憒໒ 䄸瞱塅瑻 ࣳ蒈 憒໒ 䄸瞱塅瑻 ࣳ蒈 憒໒ 䄸瞱塅瑻
PFK6-2.0 2.0~1.75 PFK16-3.0 3.0~2.75 PFK25-6.0 6.0~5.5
PFK6-2.25 2.25~2.0 PFK16-3.5 3.5~3.1 PFK25-8.0 8.0~7.5
PFK6-2.5 2.5~2.25 PFK16-4.0 4.0~3.6 SK25 PFK25-10.0 10.0~9.5
PFK6-2.75 2.75~2.5 PFK16-4.5 4.5~4.1 PFK25-AA PFK25-12.0 12.0~11.5
SK6 PFK6-3.0 3.0~2.75 PFK16-5.0 5.0~4.6 SK25-P PFK25-16.0 16.0~15.5
PFK6-AA PFK6-3.5 3.5~3.1 PFK16-5.5 5.5~5.1 PFK25-20.0 20.0~19.5
SK6-P PFK6-4.0 4.0~3.6 PFK16-6.0 6.0~5.6 PFK25-25.0 25.0~24.5
PFK6-4.5 4.5~4.1 PFK16-6.5 6.5~6.1
PFK6-5.0 5.0~4.6 PFK16-7.0 7.0~6.6
PFK6-5.5 5.5~5.1 PFK16-7.5 7.5~7.1
PFK6-6.0 6.0~5.6 PFK16-8.0 8.0~7.6
PFK10-2.0 2.0~1.75 PFK16-8.5 8.5~8.1
PFK10-2.25 2.25~2.0 SK16 PFK16-9.0 9.0~8.6
PFK10-2.5 2.5~2.25 PFK-AA PFK16-9.5 9.5~9.1
PFK10-2.75 2.75~2.5 SK16-P PFK16-10.0 10.0~9.6
PFK10-3.0 3.0~2.75 PFK16-10.5 10.5~10.1
PFK10-3.5 3.5~3.1 PFK16-11.0 11.0~10.6
PFK10-4.0 4.0~3.6 PFK16-11.5 11.5~11.1
PFK10-4.5 4.5~4.1 PFK16-12.0 12.0~11.6 COLLET
SK10 PFK10-5.0 5.0~4.6 PFK16-12.5 12.5~12.1
PFK10-AA PFK10-5.5 5.5~5.1 PFK16-13.0 13.0~12.6
SK10-P PFK10-6.0 6.0~5.6 PFK16-13.5 13.5~13.1
PFK10-6.5 6.5~6.1 PFK16-14.0 14.0~13.6
PFK10-7.0 7.0~6.6 PFK16-14.5 14.5~14.1
PFK10-7.5 7.5~7.1 PFK16-15.0 15.0~14.6
PFK10-8.0 8.0~7.6 PFK16-15.5 15.5~15.1
PFK10-8.5 8.5~8.1 PFK16-16.0 16.0~15.6
PFK10-9.0 9.0~8.6
PFK10-9.5 9.5~9.1
PFK10-10.0 10.0~9.6

3.) 6. ᒻ䄸疳ੑ蔭
PFK/SK Collet Dimensions
MODEL D d1 d2 L L1 L2
PFK6 10.5 7.5 5.8 25 17 4
SK6 10.5 7.5 5.8 25 17 4
PFK10 15.6 11.8 10 30 21.3 5
羊ଶ缛羷 Precision Class 狳硎羊ଶ Run out accuracy
SK10 15.6 11.8 10 30 21.3 5
PFK16 24.6 18.8 16 45 32 8
AA 羊ଶ缛羷 Precision 5 Ŀ
SK16 24.6 18.8 16 45 32 8
PFK25 35.6 28.8 25.4 57 43 8.5
P 羊ଶ缛羷 Precision 3 Ŀ
SK25 35.6 28.8 25.4 57 43 8.5
