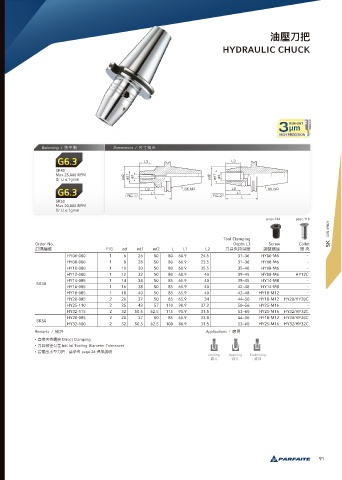

Page 93 - 2021刀把目錄

SK
SK ရ瓟ڏ಩

DIN 69871
DIN 69871 HYDRAULIC CHUCK

Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈

SK40
Max.25,000 RPM
Or U ≤ 1gmm

SK50
Max.20,000 RPM
Or U ≤ 1gmm

page.144 page.118
SK DIN 69871

Tool Clamping
Order No. Depth L3 Screw Collet
懪搳翥蒈 FIG ød ød1 ød2 L L1 L2 ڏٍ䄸瞱窼ଶ 藲碉ᣪ妟 ᒻ 䄸
HY06-080 1 6 26 50 80 60.9 24.5 31~36 HY06-M5 -
HY08-080 1 8 28 50 80 60.9 25.5 31~36 HY08-M6 -
HY10-080 1 10 30 50 80 60.9 35.5 35~40 HY08-M6 -
HY12-080 1 12 32 50 80 60.9 40 39~45 HY08-M6 HY12C
HY14-085 1 14 34 50 85 65.9 40 39~45 HY14-M8 -
SK40
HY16-085 1 16 38 50 85 65.9 40 42~48 HY14-M8 -
HY18-085 1 18 40 50 85 65.9 40 42~48 HY18-M12 -
HY20-085 2 20 37 50 85 65.9 34 44~50 HY18-M12 HY20/HY20C
HY25-110 2 25 43 57 110 90.9 37.2 50~56 HY25-M16 -
HY32-115 2 32 50.5 62.5 115 95.9 31.5 53~60 HY25-M16 HY32/HY32C
HY20-085 2 20 37 50 85 65.9 33.8 44~50 HY18-M12 HY20/HY20C
SK50
HY32-100 2 32 50.5 62.5 100 80.9 31.5 53~60 HY25-M16 HY32/HY32C
Remarks / 猋戢 Applications / 䛑አ
• ፗ矑䄸瞱羊ଶ Direct Clamping
• ڏٍຢ䕩獍癩 h6( h6 Tooling Diameter Tolerance)
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling
槑৿ 柖৿ 柮獬

91
