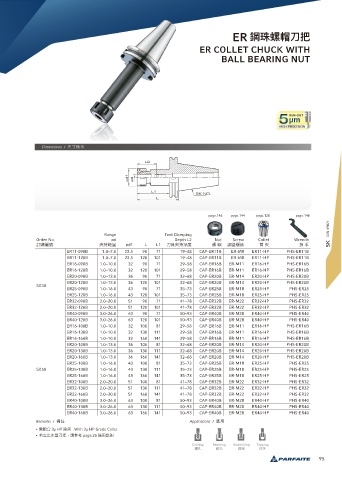

P. 97
ER 桗ቐᣪଌڏ
ER COLLET CHUCK WITH
BALL BEARING NUT
Dimensions / 疳ੑ秂纈
page.146 page.144 page.120 page.148
SK DIN 69871
Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
懪搳翥蒈 䄸瞱塅瑻 ød1 L L1 ڏٍ䄸瞱窼ଶ ᣪ ଌ 藲碉ᣪ妟 ᒻ 䄸 瞘 ಋ
ER11-090B 1.0~7.0 23.5 90 71 19~48 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-120B 1.0~7.0 23.5 120 101 19~48 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER16-090B 1.0~10.0 32 90 71 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-120B 1.0~10.0 32 120 101 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-090B 1.0~13.0 36 90 71 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-120B 1.0~13.0 36 120 101 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
SK40
ER25-090B 1.0~16.0 43 90 71 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-120B 1.0~16.0 43 120 101 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER32-090B 2.0~20.0 51 90 71 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-120B 2.0~20.0 51 120 101 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER40-090B 3.0~26.0 63 90 71 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-120B 3.0~26.0 63 120 101 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER16-100B 1.0~10.0 32 100 81 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-130B 1.0~10.0 32 130 111 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-160B 1.0~10.0 32 160 141 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-100B 1.0~13.0 36 100 81 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-130B 1.0~13.0 36 130 111 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-160B 1.0~13.0 36 160 141 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER25-100B 1.0~16.0 43 100 81 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
SK50 ER25-130B 1.0~16.0 43 130 111 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-160B 1.0~16.0 43 160 141 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER32-100B 2.0~20.0 51 100 81 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-130B 2.0~20.0 51 130 111 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-160B 2.0~20.0 51 160 141 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER40-100B 3.0~26.0 63 100 81 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-130B 3.0~26.0 63 130 111 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-160B 3.0~26.0 63 160 141 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ HP ᒻ䄸 With 3µ HP Grade Collet
• 舙襑ڊࣳڏ牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling Tapping
槑 柖 柮獬 硭粤
95
