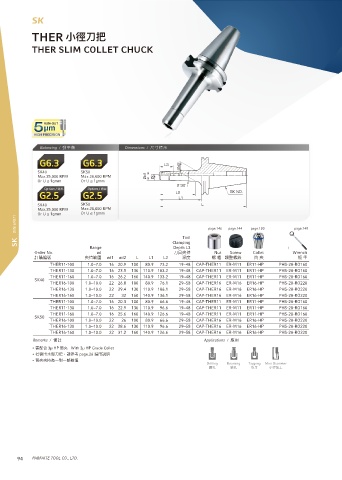

Page 96 - 2021刀把目錄

SK
SK

THER ੜ䕩ڏ಩

THER SLIM COLLET CHUCK

Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm
Or U ≤ 1gmm
SK DIN 69871 Tool page.146 page.144 page.120 page.149

Depth L3
Range Clamping
Order No. ød ڏٍ䄸瞱 Nut Screw Collet Wrench
懪搳翥蒈 䄸瞱塅瑻 ød1 ød2 L L1 L2 窼ଶ ᣪ ଌ 藲碉ᣪ妟 ᒻ 䄸 瞘 ಋ
THER11-100 1.0~7.0 16 20.9 100 80.9 73.2 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-130 1.0~7.0 16 23.5 130 110.9 103.2 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-160 1.0~7.0 16 26.2 160 140.9 133.2 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
SK40
THER16-100 1.0~10.0 22 26.8 100 80.9 76.1 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-130 1.0~10.0 22 29.4 130 110.9 106.1 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-160 1.0~10.0 22 32 160 140.9 136.1 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER11-100 1.0~7.0 16 20.3 100 80.9 66.6 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-130 1.0~7.0 16 22.9 130 110.9 96.6 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-160 1.0~7.0 16 25.6 160 140.9 126.6 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
SK50
THER16-100 1.0~10.0 22 26 100 80.9 66.6 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-130 1.0~10.0 22 28.6 130 110.9 96.6 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-160 1.0~10.0 22 31.2 160 140.9 126.6 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ HP ᒻ䄸 With 3µ HP Grade Collet
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
• ᒻ䄸䄸瞱傶Ӟ䌘Ӟ碉碍꧊
Drilling Reaming Tapping Mini Diameter
槑৿ 柖৿ 硭粤 ੜ䕩ےૡ

TD.
ARF
94
94 PARFAITE TOOL CO., LTD.
