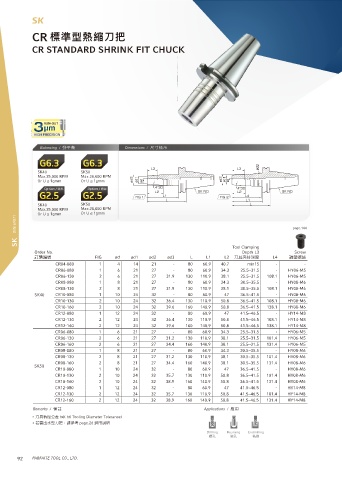

SK

CR 秂伛ࣳ籆婘ڏ಩

CR STANDARD SHRINK FIT CHUCK

Balancing / 㵕ଘᤍ㵕ଘᤍ Dimensions / 疳ੑ秂纈
Balancing /

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm
Or U ≤ 1gmm
SK DIN 69871 page.144

Tool Clamping
Order No. Depth L3 Screw
懪搳翥蒈 FIG ød ød1 ød2 ød3 L L1 L2 ڏٍ䄸瞱窼ଶ L4 藲碉ᣪ妟
CR04-080 1 4 14 21 - 80 60.9 40.7 min15 - -
CR06-080 1 6 21 27 - 80 60.9 34.3 25.5~31.5 - HY06-M5
CR06-130 2 6 21 27 31.9 130 110.9 38.1 25.5~31.5 108.1 HY06-M5
CR08-080 1 8 21 27 - 80 60.9 34.3 30.5~35.5 - HY08-M6
CR08-130 2 8 21 27 31.9 130 110.9 38.1 30.5~35.5 108.1 HY08-M6
SK40 CR10-080 1 10 24 32 - 80 60.9 47 36.5~41.5 - HY08-M6
CR10-130 2 10 24 32 36.4 130 110.9 50.8 36.5~41.5 108.1 HY08-M6
CR10-160 2 10 24 32 39.6 160 140.9 50.8 36.5~41.5 138.1 HY08-M6
CR12-080 1 12 24 32 - 80 60.9 47 41.5~46.5 - HY14-M8
CR12-130 2 12 24 32 36.4 130 110.9 50.8 41.5~46.5 108.1 HY14-M8
CR12-160 2 12 24 32 39.6 160 140.9 50.8 41.5~46.5 138.1 HY14-M8
CR06-080 1 6 21 27 - 80 60.9 34.3 25.5~31.5 - HY06-M5
CR06-130 2 6 21 27 31.2 130 110.9 38.1 25.5~31.5 101.4 HY06-M5
CR06-160 2 6 21 27 34.4 160 140.9 38.1 25.5~31.5 131.4 HY06-M5
CR08-080 1 8 21 27 - 80 60.9 34.3 30.5~35.5 - HY08-M6
CR08-130 2 8 21 27 31.2 130 110.9 38.1 30.5~35.5 101.4 HY08-M6
CR08-160 2 8 21 27 34.4 160 140.9 38.1 30.5~35.5 131.4 HY08-M6
SK50
CR10-080 1 10 24 32 - 80 60.9 47 36.5~41.5 - HY08-M6
CR10-130 2 10 24 32 35.7 130 110.9 50.8 36.5~41.5 101.4 HY08-M6
CR10-160 2 10 24 32 38.9 160 140.9 50.8 36.5~41.5 131.4 HY08-M6
CR12-080 1 12 24 32 - 80 60.9 47 41.5~46.5 - HY14-M8
CR12-130 2 12 24 32 35.7 130 110.9 50.8 41.5~46.5 101.4 HY14-M8
CR12-160 2 12 24 32 38.9 160 140.9 50.8 41.5~46.5 131.4 HY14-M8
Remarks / 猋戢 Applications / 䛑አ
• ڏٍຢ䕩獍癩 h6( h6 Tooling Diameter Tolerance)
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling
槑৿ 柖৿ 柮獬
