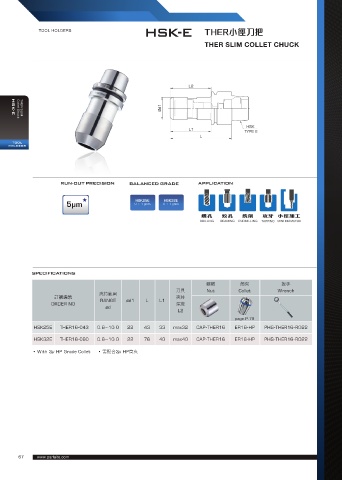

Page 72 - 普慧2021主軸

HSK-E
TOOL HOLDERS THER小徑刀把

THER SLIM COLLET CHUCK

HSK-E
Collet Chuck

TOOL THER SLIM
HOLDERS

RUN-OUT PRECISION BALANCED GRADE APPLICATION

HSK32E
HSK25E
5µm U ≤ 1 gmm U ≤ 1 gmm

SPECIFICATIONS

螺帽 筒夾 扳手
刀具 Nut Collet Wrench
夾持範圍
訂購編號 RANGE ød1 L L1 夾持
ORDER NO 深度
ød
L2
page.P.79
HSK25E THER16-043 0.6~10.0 22 43 33 max32 CAP-THER16 ER16-HP PHS-THER16-RO22
HSK32E THER16-060 0.6~10.0 22 76 40 max40 CAP-THER16 ER16-HP PHS-THER16-RO22

• With 3µ HP Grade Collet • 需配合3µ HP筒夾
