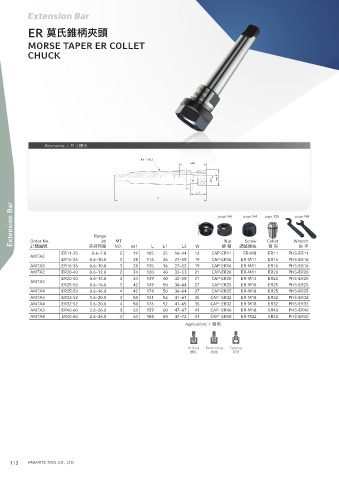

Extension Bar

ER 莫氏錐柄夾頭

MORSE TAPER ER COLLET
CHUCK

Dimensions / 尺寸標示

Extension Bar Range page.146 page.144 page.120 page.148

Screw
Nut
MT
ød
Wrench
Order No.
訂購編號
W
扳 手
L2
筒 夾
螺 帽
19
0.6~7.0
ER11
ER11-25 夾持範圍 NO. 2 ød1 105 L L1 16~44 13 CAP-ER11 調整螺絲 Collet PHS-ER11
ER-M8
25
AMTA2
ER16-36 0.6~10.0 2 28 116 36 27~58 19 CAP-ER16 ER-M11 ER16 PHS-ER16
AMTA3 ER16-36 0.6~10.0 3 28 135 36 27~53 19 CAP-ER16 ER-M11 ER16 PHS-ER16
AMTA2 ER20-40 0.6~13.0 2 34 120 40 32~53 21 CAP-ER20 ER-M11 ER20 PHS-ER20
ER20-40 0.6~13.0 3 34 139 40 32~58 21 CAP-ER20 ER-M14 ER20 PHS-ER20
AMTA3
ER25-50 0.6~16.0 3 42 149 50 36~64 27 CAP-ER25 ER-M18 ER25 PHS-ER25
AMTA4 ER25-50 0.6~16.0 4 42 174 50 36~64 27 CAP-ER25 ER-M18 ER25 PHS-ER25
AMTA3 ER32-52 1.6~20.0 3 50 151 52 41~61 35 CAP- ER32 ER-M18 ER32 PHS-ER32
AMTA4 ER32-52 1.6~20.0 4 50 176 52 41~65 35 CAP- ER32 ER-M18 ER32 PHS-ER32
AMTA3 ER40-60 2.6~26.0 3 63 159 60 47~67 41 CAP- ER40 ER-M18 ER40 PHS-ER40
AMTA4 ER40-60 2.6~26.0 4 63 184 60 47~72 41 CAP- ER40 ER-M22 ER40 PHS-ER40
Applications / 應用
Drilling Endmilling Tapping
鑽孔 銑削 攻牙

112 PARFAITE TOOL CO., LTD.
