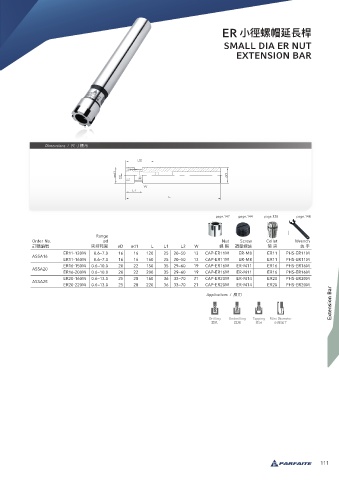

ER 小徑螺帽延長桿
SMALL DIA ER NUT
EXTENSION BAR
Dimensions / 尺寸標示
page.147 page.144 page.120 page.148
Range
Order No. ød Nut Screw Collet Wrench
訂購編號 夾持範圍 øD ød1 L L1 L2 W 螺 帽 調整螺絲 筒 夾 扳 手
ER11-120M 0.6~7.0 16 16 120 25 20~50 13 CAP-ER11M ER-M8 ER11 PHS-ER11M
ASSA16
ER11-160M 0.6~7.0 16 16 160 25 20~50 13 CAP-ER11M ER-M8 ER11 PHS-ER11M
ER16-150M 0.6~10.0 20 22 150 35 29~60 19 CAP-ER16M ER-M11 ER16 PHS-ER16M
ASSA20
ER16-200M 0.6~10.0 20 22 200 35 29~60 19 CAP-ER16M ER-M11 ER16 PHS-ER16M
ER20-160M 0.6~13.0 25 28 160 36 33~70 21 CAP-ER20M ER-M14 ER20 PHS-ER20M
ASSA25
ER20-220M 0.6~13.0 25 28 220 36 33~70 21 CAP-ER20M ER-M14 ER20 PHS-ER20M
Extension Bar
Applications / 應用
Drilling Endmilling Tapping Mini Diameter
鑽孔 銑削 攻牙 小徑加工
