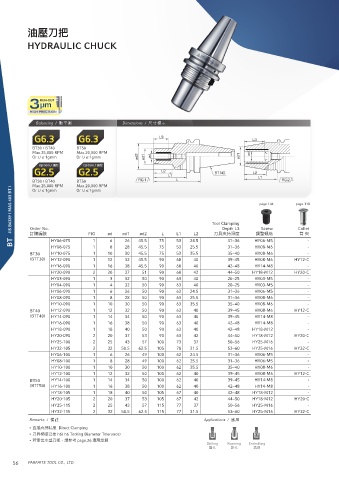

BT

油壓刀把

HYDRAULIC CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm

BT30 / BT40 BT50
Max.25,000 RPM
BT JIS B6339 ( MAS 403 BT ) BT JIS B6339 ( MAS 403 BT ) Order No. FIG ød ød1 ød2 L L1 L2 Tool Clamping 調整螺絲 page.118
Max.20,000 RPM
Or U ≤ 1gmm
Or U ≤ 1gmm
page.144

Screw
Collet
Depth L3
訂購編號
刀具夾持深度
筒 夾
6
75
8
31~36
53
25.5
45.5
HY08-M6
HY08-075
28
53
35.5
30
HY08-M6
35~40
HY10-075
75
45.5
BT30 HY06-075 1 1 1 10 26 45.5 75 53 24.5 31~36 HY06-M5 - - -
(BTT30) HY12-090 1 12 32 45.5 90 68 40 39~45 HY08-M6 HY12-C
HY16-090 1 16 38 45.5 90 68 40 42~48 HY14-M8 -
HY20-090 2 20 37 51 90 68 42 44~50 HY18-M12 HY20-C
HY03-090 1 3 32 50 90 63 40 20~25 HY03-M5 -
HY04-090 1 4 32 50 90 63 40 20~25 HY03-M5 -
HY06-090 1 6 26 50 90 63 24.5 31~36 HY06-M5 -
HY08-090 1 8 28 50 90 63 25.5 31~36 HY08-M6 -
HY10-090 1 10 30 50 90 63 35.5 35~40 HY08-M6 -
BT40 HY12-090 1 12 32 50 90 63 40 39~45 HY08-M6 HY12-C
(BTT40) HY14-090 1 14 34 50 90 63 40 39~45 HY14-M8 -
HY16-090 1 16 38 50 90 63 40 42~48 HY14-M8 -
HY18-090 1 18 40 50 90 63 40 42~48 HY18-M12 -
HY20-090 2 20 37 53 90 63 42 44~50 HY18-M12 HY20-C
HY25-100 2 25 43 57 100 73 37 50~56 HY25-M16 -
HY32-105 2 32 50.5 62.5 105 78 31.5 53~60 HY25-M16 HY32-C
HY06-100 1 6 26 49 100 62 24.5 31~36 HY06-M5 -
HY08-100 1 8 28 49 100 62 25.5 31~36 HY06-M5 -
HY10-100 1 10 30 50 100 62 35.5 35~40 HY08-M6 -
HY12-100 1 12 32 50 100 62 40 39~45 HY08-M6 HY12-C
BT50 HY14-100 1 14 34 50 100 62 40 39~45 HY14-M8 -
(BTT50) HY16-100 1 16 38 50 100 62 40 42~48 HY14-M8 -
HY18-105 1 18 40 50 105 67 40 42~48 HY18-M12 -
HY20-105 2 20 37 53 105 67 42 44~50 HY18-M12 HY20-C
HY25-115 2 25 43 57 115 77 37 50~56 HY25-M16 -
HY32-115 2 32 50.5 62.5 115 77 31.5 53~60 HY25-M16 HY32-C
Remarks / 備註 Applications / 應用
• 直接夾持精度 Direct Clamping
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling
鑽孔 鉸孔 銑削
56 PARFAITE TOOL CO., LTD.
