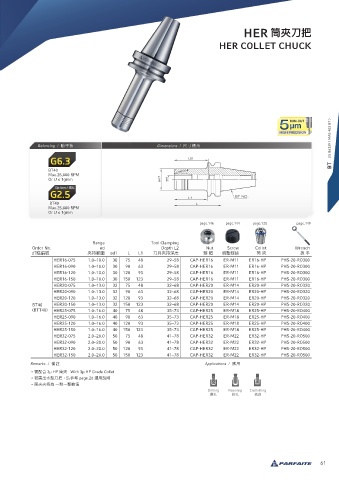

Page 63 - 普慧2020刀把(電子書版)

HER 筒夾刀把

HER COLLET CHUCK

BT JIS B6339 ( MAS 403 BT )

Balancing / 動平衡 Dimensions / 尺寸標示

BT40
Max.25,000 RPM
Or U ≤ 1gmm

BT40
Max.25,000 RPM
Or U ≤ 1gmm
page.146 page.144 page.120 page.149

Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
HER16-075 1.0~10.0 30 75 48 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-090 1.0~10.0 30 90 63 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-120 1.0~10.0 30 120 93 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-150 1.0~10.0 30 150 123 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER20-075 1.0~13.0 32 75 48 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-090 1.0~13.0 32 90 63 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-120 1.0~13.0 32 120 93 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
BT40 HER20-150 1.0~13.0 32 150 123 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
(BTT40) HER25-075 1.0~16.0 40 75 48 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-090 1.0~16.0 40 90 63 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-120 1.0~16.0 40 120 93 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-150 1.0~16.0 40 150 123 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER32-075 2.0~20.0 50 75 48 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-090 2.0~20.0 50 90 63 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-120 2.0~20.0 50 120 93 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-150 2.0~20.0 50 150 123 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為 一對一整數值
Drilling Reaming Endmilling
鑽孔 鉸孔 銑削

61
