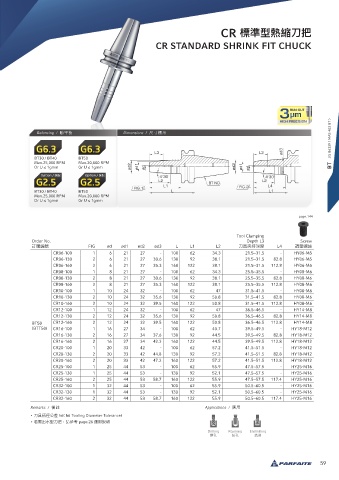

CR 標準型熱縮刀把
CR STANDARD SHRINK FIT CHUCK
BT JIS B6339 ( MAS 403 BT )
Balancing / 動平衡 Dimensions / 尺寸標示
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
page.144
Tool Clamping
Order No. Depth L3 Screw
訂購編號 FIG ød ød1 ød2 ød3 L L1 L2 刀具夾持深度 L4 調整螺絲
CR06-100 1 6 21 27 - 100 62 34.3 21.5~31.5 - HY06-M5
CR06-130 2 6 21 27 30.6 130 92 38.1 21.5~31.5 82.8 HY06-M5
CR06-160 2 6 21 27 35.3 160 122 38.1 21.5~31.5 112.8 HY06-M5
CR08-100 1 8 21 27 - 100 62 34.3 25.5~35.5 - HY08-M6
CR08-130 2 8 21 27 30.6 130 92 38.1 25.5~35.5 82.8 HY08-M6
CR08-160 2 8 21 27 35.3 160 122 38.1 25.5~35.5 112.8 HY08-M6
CR10-100 1 10 24 32 - 100 62 47 31.5~41.5 - HY08-M6
CR10-130 2 10 24 32 35.6 130 92 50.8 31.5~41.5 82.8 HY08-M6
CR10-160 2 10 24 32 39.5 160 122 50.8 31.5~41.5 112.8 HY08-M6
CR12-100 1 12 24 32 - 100 62 47 36.5~46.5 - HY14-M8
CR12-130 2 12 24 32 35.6 130 92 50.8 36.5~46.5 82.8 HY14-M8
BT50 CR12-160 2 12 24 32 39.5 160 122 50.8 36.5~46.5 112.8 HY14-M8
(BTT50) CR16-100 1 16 27 34 - 100 62 40.7 39.5~49.5 - HY18-M12
CR16-130 2 16 27 34 37.6 130 92 44.5 39.5~49.5 82.8 HY18-M12
CR16-160 2 16 27 34 42.3 160 122 44.5 39.5~49.5 112.8 HY18-M12
CR20-100 1 20 33 42 - 100 62 57.2 41.5~51.5 - HY18-M12
CR20-130 2 20 33 42 44.8 130 92 57.2 41.5~51.5 82.8 HY18-M12
CR20-160 2 20 33 42 47.2 160 122 57.2 41.5~51.5 112.8 HY18-M12
CR25-100 1 25 44 53 - 100 62 55.9 47.5~57.5 - HY25-M16
CR25-130 1 25 44 53 - 130 92 52.1 47.5~57.5 - HY25-M16
CR25-160 2 25 44 53 58.7 160 122 55.9 47.5~57.5 117.4 HY25-M16
CR32-100 1 32 44 53 - 100 62 55.9 50.5~60.5 - HY25-M16
CR32-130 1 32 44 53 - 130 92 52.1 50.5~60.5 - HY25-M16
CR32-160 2 32 44 53 58.7 160 122 55.9 50.5~60.5 117.4 HY25-M16
Remarks / 備註 Applications / 應用
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling
鑽孔 鉸孔 銑削
