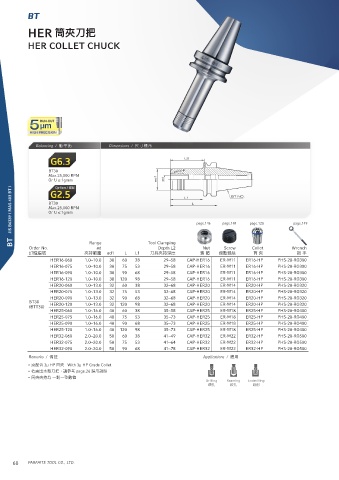

BT

HER 筒夾刀把

HER COLLET CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

BT30
Max.25,000 RPM
Or U ≤ 1gmm
BT JIS B6339 ( MAS 403 BT ) BT30 page.146 page.144 page.120 page.149

Max.25,000 RPM
Or U ≤ 1gmm

Order No. Range Tool Clamping Nut Screw Collet Wrench
ød
Depth L2
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
HER16-060 1.0~10.0 30 60 38 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-075 1.0~10.0 30 75 53 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-090 1.0~10.0 30 90 68 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-120 1.0~10.0 30 120 98 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER20-060 1.0~13.0 32 60 38 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-075 1.0~13.0 32 75 53 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-090 1.0~13.0 32 90 68 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
BT30 HER20-120 1.0~13.0 32 120 98 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
(BTT30)
HER25-060 1.0~16.0 40 60 38 35~58 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-075 1.0~16.0 40 75 53 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-090 1.0~16.0 40 90 68 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-120 1.0~16.0 40 120 98 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER32-060 2.0~20.0 50 60 38 41~49 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-075 2.0~20.0 50 75 53 41~64 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-090 2.0~20.0 50 90 68 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為 一對一整數值
Drilling Reaming Endmilling
鑽孔 鉸孔 銑削
