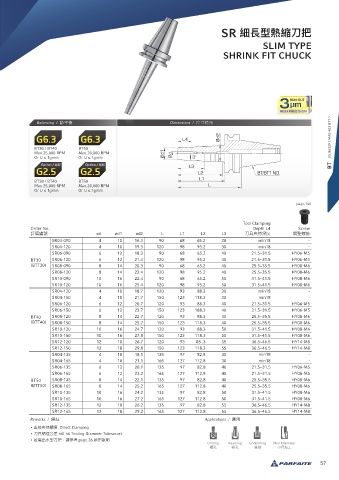

SR 細長型熱縮刀把
SLIM TYPE
SHRINK FIT CHUCK
BT JIS B6339 ( MAS 403 BTT )
Balancing / 動平衡 Dimensions / 尺寸標示
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
page.144
Tool Clamping
Order No. Depth L4 Screw
訂購編號 ød ød1 ød2 L L1 L2 L3 刀具夾持深度 調整螺絲
SR04-090 4 10 16.3 90 68 65.2 30 min18 -
SR04-120 4 10 19.3 120 98 95.2 30 min18 -
SR06-090 6 12 18.3 90 68 65.2 40 21.5~31.5 HY06-M5
BT30 SR06-120 6 12 21.4 120 98 95.2 40 21.5~31.5 HY06-M5
(BTT30) SR08-090 8 14 20.3 90 68 65.2 40 25.5~35.5 HY08-M6
SR08-120 8 14 23.4 120 98 95.2 40 25.5~35.5 HY08-M6
SR10-090 10 16 22.4 90 68 65.2 50 31.5~41.5 HY08-M6
SR10-120 10 16 25.4 120 98 95.2 50 31.5~41.5 HY08-M6
SR04-120 4 10 18.7 120 93 88.3 30 min18 -
SR04-150 4 10 21.7 150 123 118.3 30 min18 -
SR06-120 6 12 20.7 120 93 88.3 40 21.5~31.5 HY06-M5
SR06-150 6 12 23.7 150 123 188.3 40 21.5~31.5 HY06-M5
BT40 SR08-120 8 14 22.7 120 93 88.3 40 25.5~35.5 HY08-M6
(BTT40) SR08-150 8 14 25.7 150 123 118.3 40 25.5~35.5 HY08-M6
SR10-120 10 16 24.7 120 93 88.3 50 31.5~41.5 HY08-M6
SR10-150 10 16 27.8 150 123 118.3 50 31.5~41.5 HY08-M6
SR12-120 12 18 26.7 120 93 88..3 55 36.5~46.5 HY14-M8
SR12-150 12 18 29.8 150 123 118.3 55 36.5~46.5 HY14-M8
SR04-135 4 10 18.1 135 97 82.8 30 min18 -
SR04-165 4 10 21.1 165 127 112.8 30 min18 -
SR06-135 6 12 20.1 135 97 82.8 40 21.5~31.5 HY06-M5
SR06-165 6 12 23.2 165 127 112.8 40 21.5~31.5 HY06-M5
BT50 SR08-135 8 14 22.1 135 97 82.8 40 25.5~35.5 HY08-M6
(BTT50) SR08-165 8 14 25.2 165 127 112.8 40 25.5~35.5 HY08-M6
SR10-135 10 16 24.2 135 97 82.8 50 31.5~41.5 HY08-M6
SR10-165 10 16 27.2 165 127 112.8 50 31.5~41.5 HY08-M6
SR12-135 12 18 26.2 135 97 82.8 55 36.5~46.5 HY14-M8
SR12-165 12 18 29.2 165 127 112.8 55 36.5~46.5 HY14-M8
Remarks / 備註 Applications / 應用
• 直接夾持精度 Direct Clamping
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling Mini Diameter
鑽孔 鉸孔 銑削 小徑加工
