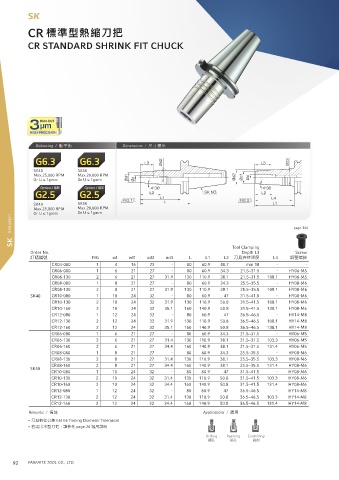

CR 標準型熱縮刀把

CR STANDARD SHRINK FIT CHUCK

Balancing / 動平衡動平衡
Balancing / Dimensions / 尺寸標示

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm
Or U ≤ 1gmm
SK DIN 69871 page.144

Order No. Tool Clamping Screw
Depth L3
訂購編號 FIG ød ød1 ød2 ød3 L L1 L2 刀具夾持深度 L4 調整螺絲
CR04-080 1 4 16 23 - 80 60.9 40.7 min 18 - -
CR06-080 1 6 21 27 - 80 60.9 34.3 21.5~31.5 - HY06-M5
CR06-130 2 6 21 27 31.9 130 110.9 38.1 21.5~31.5 108.1 HY06-M5
CR08-080 1 8 21 27 - 80 60.9 34.3 25.5~35.5 - HY08-M6
CR08-130 2 8 21 27 31.9 130 110.9 38.1 25.5~35.5 108.1 HY08-M6
SK40 CR10-080 1 10 24 32 - 80 60.9 47 31.5~41.5 - HY08-M6
CR10-130 2 10 24 32 31.9 130 110.9 50.8 31.5~41.5 108.1 HY08-M6
CR10-160 2 10 24 32 35.1 160 140.9 50.8 31.5~41.5 138.1 HY08-M6
CR12-080 1 12 24 32 - 80 60.9 47 36.5~46.5 - HY14-M8
CR12-130 2 12 24 32 31.9 130 110.9 50.8 36.5~46.5 108.1 HY14-M8
CR12-160 2 12 24 32 35.1 160 140.9 50.8 36.5~46.5 138.1 HY14-M8
CR06-080 1 6 21 27 - 80 60.9 34.3 21.5~31.5 - HY06-M5
CR06-130 2 6 21 27 31.4 130 110.9 38.1 21.5~31.5 103.3 HY06-M5
CR06-160 2 6 21 27 34.4 160 140.9 38.1 21.5~31.5 131.4 HY06-M5
CR08-080 1 8 21 27 - 80 60.9 34.3 25.5~35.5 - HY08-M6
CR08-130 2 8 21 27 31.4 130 110.9 38.1 25.5~35.5 103.3 HY08-M6
CR08-160 2 8 21 27 34.4 160 140.9 38.1 25.5~35.5 131.4 HY08-M6
SK50
CR10-080 1 10 24 32 - 80 60.9 47 31.5~41.5 - HY08-M6
CR10-130 2 10 24 32 31.4 130 110.9 50.8 31.5~41.5 103.3 HY08-M6
CR10-160 2 10 24 32 34.4 160 140.9 50.8 31.5~41.5 131.4 HY08-M6
CR12-080 1 12 24 32 - 80 60.9 47 36.5~46.5 - HY14-M8
CR12-130 2 12 24 32 31.4 130 110.9 50.8 36.5~46.5 103.3 HY14-M8
CR12-160 2 12 24 32 34.4 160 140.9 50.8 36.5~46.5 131.4 HY14-M8
Remarks / 備註 Applications / 應用
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling
鑽孔 鉸孔 銑削
