P. 91

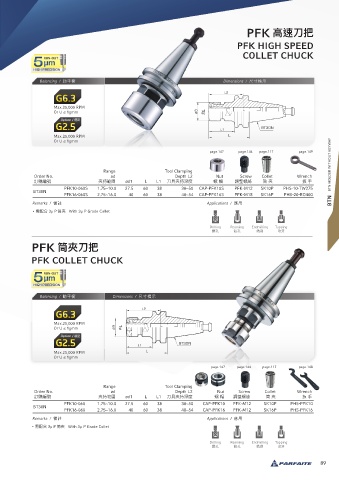

PFK 高速刀把
PFK HIGH SPEED
COLLET CHUCK
Balancing / 動平衡 Dimensions / 尺寸標示
Max.25,000 RPM
Or U ≤ 1gmm
Max.25,000 RPM
Or U ≤ 1gmm
page.147 page.144 page.117 page.149
Range Tool Clamping BTN BTN HOLDER WITHOUT KEYWAY
Order No. ød Depth L2 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
PFK10-060S 1.75~10.0 27.5 60 38 30~50 CAP-PFK10S PFK-M12 SK10P PHS-10-TW275
BT30N
PFK16-060S 2.75~16.0 40 60 38 40~54 CAP-PFK16S PFK-M18 SK16P PHS-20-RO400
Remarks / 備註 Applications / 應用
• 需配合 3µ P 筒夾 With 3µ P Grade Collet
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
PFK 筒夾刀把
PFK COLLET CHUCK
Balancing / 動平衡 Dimensions / 尺寸標示
Max.25,000 RPM
Or U ≤ 1gmm
Max.25,000 RPM
Or U ≤ 1gmm
page.147 page.144 page.117 page.148
Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
PFK10-060 1.75~10.0 27.5 60 38 30~50 CAP-PFK10 PFK-M12 SK10P PHS-PFK10
BT30N
PFK16-060 2.75~16.0 40 60 38 40~54 CAP-PFK16 PFK-M12 SK16P PHS-PFK16
Remarks / 備註 Applications / 應用
• 需配合 3µ P 筒夾 With 3µ P Grade Collet
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
89
