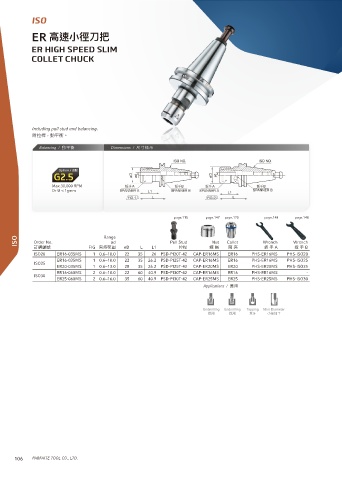

Page 108 - 2021刀把目錄

ISO

ER ṛ蝧ੜ䕩ڏ಩

ER HIGH SPEED SLIM
COLLET CHUCK

Including pull stud and balancing.
ᴫ೉䫱牧㵕ଘᤍ牐
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈

Max.30,000 RPM
Or U ≤ 1gmm

page.115 page.147 page.120 page.148 page.148

ISO Order No. Range Pull Stud Nut Collet Wrench Wrench
ød
懪搳翥蒈 FIG 䄸瞱塅瑻 øD L L1 ೉䫱 ᣪ ଌ ᒻ 䄸 瞘 ಋ A 瞘 ಋ B
ISO20 ER16-035MS 1 0.6~10.0 22 35 26 PSD-PI20T-42 CAP-ER16MS ER16 PHS-ER16MS PHS-ISO20
ER16-035MS 1 0.6~10.0 22 35 26.2 PSD-PI25T-42 CAP-ER16MS ER16 PHS-ER16MS PHS-ISO25
ISO25
ER20-035MS 1 0.6~13.0 28 35 26.2 PSD-PI25T-42 CAP-ER20MS ER20 PHS-ER20MS PHS-ISO25
ER16-060MS 2 0.6~10.0 22 60 40.9 PSD-PI30T-42 CAP-ER16MS ER16 PHS-ER16MS -
ISO30
ER25-060MS 2 0.6~16.0 35 60 40.9 PSD-PI30T-42 CAP-ER25MS ER25 PHS-ER25MS PHS-ISO30
Applications / 䛑አ

Endmilling Endmilling Tapping Mini Diameter
柮獬 柮獬 硭粤 ੜ䕩ےૡ

106 PARFAITE TOOL CO., LTD.
