HER ᒻ䄸ڏ಩

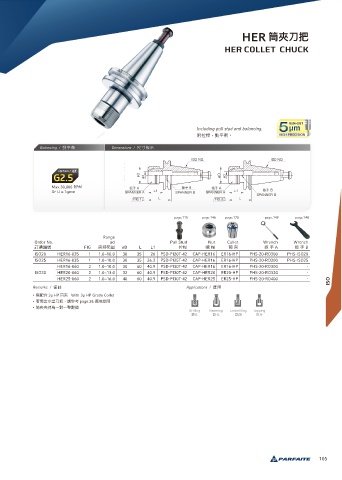

HER COLLET CHUCK

Including pull stud and balancing.
ᴫ೉䫱牧㵕ଘᤍ牐
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈

Max.30,000 RPM
Or U ≤ 1gmm

page.115 page.146 page.120 page.149 page.148

Range
Order No. ød Pull Stud Nut Collet Wrench Wrench
懪搳翥蒈 FIG 䄸瞱塅瑻 øD L L1 ೉䫱 ᣪ ଌ ᒻ 䄸 瞘 ಋ A 瞘 ಋ B
ISO20 HER16-035 1 1.0~10.0 30 35 26 PSD-PI20T-42 CAP-HER16 ER16-HP PHS-20-RO300 PHS-ISO20
ISO25 HER16-035 1 1.0~10.0 30 35 26.2 PSD-PI25T-42 CAP-HER16 ER16-HP PHS-20-RO300 PHS-ISO25
HER16-060 2 1.0~10.0 30 60 40.9 PSD-PI30T-42 CAP-HER16 ER16-HP PHS-20-RO300 -
ISO30 HER20-060 2 1.0~13.0 32 60 40.9 PSD-PI30T-42 CAP-HER20 ER20-HP PHS-20-RO320 -
HER25-060 2 1.0~16.0 40 60 40.9 PSD-PI30T-42 CAP-HER25 ER25-HP PHS-20-RO400 - ISO
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ HP ᒻ䄸 With 3µ HP Grade Collet
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
• ᒻ䄸䄸瞱傶Ӟ䌘Ӟ碉碍꧊
Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

105
