ISO

PFK ᒻ䄸ڏ಩

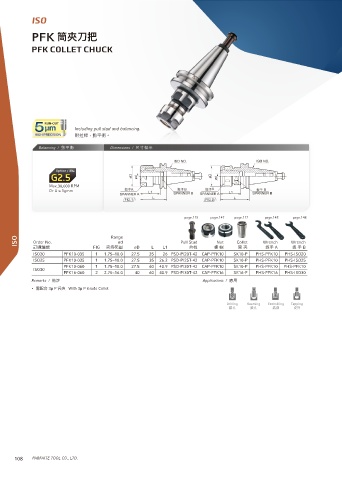

PFK COLLET CHUCK

Including pull stud and balancing.
ᴫ೉䫱牧㵕ଘᤍ牐
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈

Max.30,000 RPM
Or U ≤ 1gmm

page.115 page.147 page.117 page.148 page.148

ISO Order No. Range Pull Stud Nut Collet Wrench Wrench
ød
懪搳翥蒈 FIG 䄸瞱塅瑻 øD L L1 ೉䫱 ᣪ ଌ ᒻ 䄸 瞘ಋ A 瞘 ಋ B
ISO20 PFK10-035 1 1.75~10.0 27.5 35 26 PSD-PI20T-42 CAP-PFK10 SK10-P PHS-PFK10 PHS-ISO20
ISO25 PFK10-035 1 1.75~10.0 27.5 35 26.2 PSD-PI25T-42 CAP-PFK10 SK10-P PHS-PFK10 PHS-ISO25
PFK10-060 1 1.75~10.0 27.5 60 40.9 PSD-PI30T-42 CAP-PFK10 SK10-P PHS-PFK10 PHS-PFK10
ISO30
PFK16-060 2 2.75~16.0 40 60 40.9 PSD-PI30T-42 CAP-PFK16 SK16-P PHS-PFK16 PHS-ISO30
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ P ᒻ䄸 With 3µ P Grade Collet

Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

108 PARFAITE TOOL CO., LTD.
