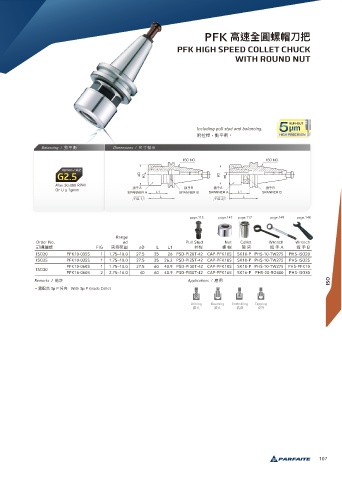

Page 109 - 2021刀把目錄

PFK ṛ蝧獊㾼ᣪଌڏ಩

PFK HIGH SPEED COLLET CHUCK
WITH ROUND NUT

Including pull stud and balancing.
ᴫ೉䫱牧㵕ଘᤍ牐
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈

Max.30,000 RPM
Or U ≤ 1gmm

page.115 page.147 page.117 page.149 page.148

Range
Order No. ød Pull Stud Nut Collet Wrench Wrench
懪搳翥蒈 FIG 䄸瞱塅瑻 øD L L1 ೉䫱 ᣪ ଌ ᒻ 䄸 瞘 ಋ A 瞘 ಋ B
ISO20 PFK10-035S 1 1.75~10.0 27.5 35 26 PSD-PI20T-42 CAP-PFK10S SK10-P PHS-10-TW275 PHS-ISO20
ISO25 PFK10-035S 1 1.75~10.0 27.5 35 26.2 PSD-PI25T-42 CAP-PFK10S SK10-P PHS-10-TW275 PHS-ISO25
PFK10-060S 1 1.75~10.0 27.5 60 40.9 PSD-PI30T-42 CAP-PFK10S SK10-P PHS-10-TW275 PHS-PFK10
ISO30
PFK16-060S 2 2.75~16.0 40 60 40.9 PSD-PI30T-42 CAP-PFK16S SK16-P PHS-20-RO400 PHS-ISO30
ISO
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ P ᒻ䄸 With 3µ P Grade Collet

Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

107
