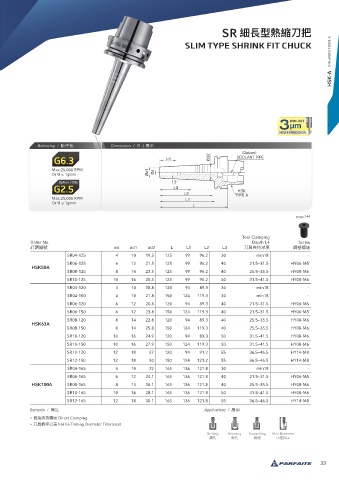

SR 細長型熱縮刀把
HSK-A DIN 69893 FORM A
SLIM TYPE SHRINK FIT CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

Max.25,000 RPM
Or U ≤ 1gmm

Max.25,000 RPM
Or U ≤ 1gmm

page.144

Tool Clamping
Order No. Depth L4 Screw
訂購編號 ød ød1 ød2 L L1 L2 L3 刀具夾持深度 調整螺絲
SR04-125 4 10 19.5 125 99 96.2 30 min18 -
SR06-125 6 12 21.5 125 99 96.2 40 21.5~31.5 HY06-M5
HSK50A
SR08-125 8 14 23.5 125 99 96.2 40 25.5~35.5 HY08-M6
SR10-125 10 16 25.5 125 99 96.2 50 31.5~41.5 HY08-M6
SR04-120 4 10 18.8 120 94 89.3 30 min18 -
SR04-150 4 10 21.8 150 124 119.3 30 min18 -
SR06-120 6 12 20.8 120 94 89.3 40 21.5~31.5 HY06-M5
SR06-150 6 12 23.8 150 124 119.3 40 21.5~31.5 HY06-M5
SR08-120 8 14 22.8 120 94 89.3 40 25.5~35.5 HY08-M6
HSK63A
SR08-150 8 14 25.8 150 124 119.3 40 25.5~35.5 HY08-M6
SR10-120 10 16 24.9 120 94 89.3 50 31.5~41.5 HY08-M6
SR10-150 10 16 27.9 150 124 119.3 50 31.5~41.5 HY08-M6
SR12-120 12 18 27 120 94 91.2 55 36.5~46.5 HY14-M8
SR12-150 12 18 30 150 124 121.2 55 36.5~46.5 HY14-M8
SR04-165 4 10 22 165 136 121.8 30 min18 -
SR06-165 6 12 24.1 165 136 121.8 40 21.5~31.5 HY06-M5
HSK100A SR08-165 8 14 26.1 165 136 121.8 40 25.5~35.5 HY08-M6
SR10-165 10 16 28.1 165 136 121.8 50 31.5~41.5 HY08-M6
SR12-165 12 18 30.1 165 136 121.8 55 36.5~46.5 HY14-M8
Remarks / 備註 Applications / 應用
• 直接夾持精度 Direct Clamping
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)

Drilling Reaming Endmilling Mini Diameter
鑽孔 鉸孔 銑削 小徑加工
