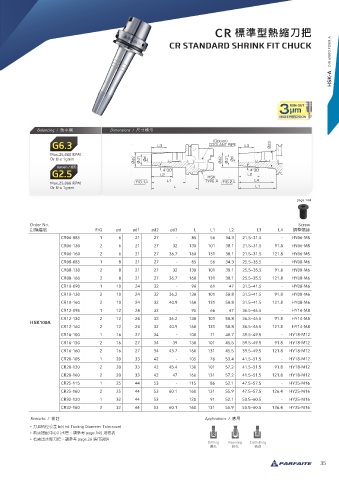

CR 標準型熱縮刀把
HSK-A DIN 69893 FORM A
CR STANDARD SHRINK FIT CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

Max.25,000 RPM
Or U ≤ 1gmm

Max.25,000 RPM
Or U ≤ 1gmm
page.144

Order No. Screw
訂購編號 FIG ød ød1 ød2 ød3 L L1 L2 L3 L4 調整螺絲
CR06-085 1 6 21 27 - 85 56 34.3 21.5~31.5 - HY06-M5
CR06-130 2 6 21 27 32 130 101 38.1 21.5~31.5 91.8 HY06-M5
CR06-160 2 6 21 27 36.7 160 131 38.1 21.5~31.5 121.8 HY06-M5
CR08-085 1 8 21 27 - 85 56 34.3 25.5~35.5 - HY08-M6
CR08-130 2 8 21 27 32 130 101 38.1 25.5~35.5 91.8 HY08-M6
CR08-160 2 8 21 27 36.7 160 131 38.1 25.5~35.5 121.8 HY08-M6
CR10-090 1 10 24 32 - 90 61 47 31.5~41.5 - HY08-M6
CR10-130 2 10 24 32 36.2 130 101 50.8 31.5~41.5 91.8 HY08-M6
CR10-160 2 10 24 32 40.9 160 131 50.8 31.5~41.5 121.8 HY08-M6
CR12-095 1 12 24 32 - 95 66 47 36.5~46.5 - HY14-M8
CR12-130 2 12 24 32 36.2 130 101 50.8 36.5~46.5 91.8 HY14-M8
HSK100A
CR12-160 2 12 24 32 40.9 160 131 50.8 36.5~46.5 121.8 HY14-M8
CR16-100 1 16 27 34 - 100 71 40.7 39.5~49.5 - HY18-M12
CR16-130 2 16 27 34 39 130 101 45.5 39.5~49.5 91.8 HY18-M12
CR16-160 2 16 27 34 43.7 160 131 45.5 39.5~49.5 121.8 HY18-M12
CR20-105 1 20 33 42 - 105 76 53.4 41.5~51.5 - HY18-M12
CR20-130 2 20 33 42 45.4 130 101 57.2 41.5~51.5 91.8 HY18-M12
CR20-160 2 20 33 42 47 160 131 57.2 41.5~51.5 121.8 HY18-M12
CR25-115 1 25 44 53 - 115 86 52.1 47.5~57.5 - HY25-M16
CR25-160 2 25 44 53 60.1 160 131 55.9 47.5~57.5 126.4 HY25-M16
CR32-120 1 32 44 53 - 120 91 52.1 50.5~60.5 - HY25-M16
CR32-160 2 32 44 53 60.1 160 131 55.9 50.5~60.5 126.4 HY25-M16
Remarks / 備註 Applications / 應用
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)
• 若需搭配中心出水管，請參考 page.145 規格表
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling
鑽孔 鉸孔 銑削
