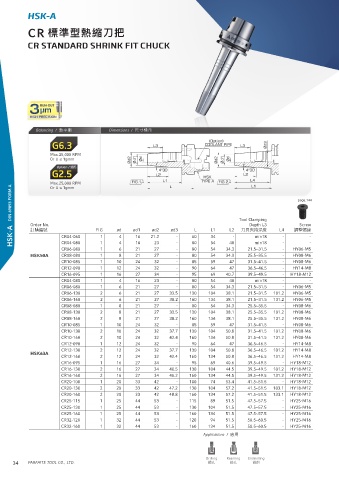

Page 36 - 普慧2020刀把(電子書版)

HSK-A

CR 標準型熱縮刀把

CR STANDARD SHRINK FIT CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

Max.25,000 RPM
Or U ≤ 1gmm

Max.25,000 RPM
HSK-A DIN 69893 FORM A Order No. Or U ≤ 1gmm FIG ød ød1 ød2 ød3 L L1 L2 Tool Clamping L4 調整螺絲
page.144

Depth L3
Screw
刀具夾持深度
訂購編號
min18
CR04-060
80
23
16
min18
CR04-080
40
54
54
80
CR06-080 1 1 1 4 4 6 16 21.2 - - - 60 34 34.3 - 21.5~31.5 - - - HY06-M5 - -
21
27
HSK50A CR08-080 1 8 21 27 - 80 54 34.3 25.5~35.5 - HY08-M6
CR10-085 1 10 24 32 - 85 59 47 31.5~41.5 - HY08-M6
CR12-090 1 12 24 32 - 90 64 47 36.5~46.5 - HY14-M8
CR16-095 1 16 27 34 - 95 69 40.7 39.5~49.5 - HY18-M12
CR04-080 1 4 16 23 - 80 54 40 min18 - -
CR06-080 1 6 21 27 - 80 54 34.3 21.5~31.5 - HY06-M5
CR06-130 2 6 21 27 33.5 130 104 38.1 21.5~31.5 101.2 HY06-M5
CR06-160 2 6 21 27 38.2 160 134 38.1 21.5~31.5 131.2 HY06-M5
CR08-080 1 8 21 27 - 80 54 34.3 25.5~35.5 - HY08-M6
CR08-130 2 8 21 27 33.5 130 104 38.1 25.5~35.5 101.2 HY08-M6
CR08-160 2 8 21 27 38.2 160 134 38.1 25.5~35.5 131.2 HY08-M6
CR10-085 1 10 24 32 - 85 59 47 31.5~41.5 - HY08-M6
CR10-130 2 10 24 32 37.7 130 104 50.8 31.5~41.5 101.2 HY08-M6
CR10-160 2 10 24 32 42.4 160 134 50.8 31.5~41.5 131.2 HY08-M6
CR12-090 1 12 24 32 - 90 64 47 36.5~46.5 - HY14-M8
CR12-130 2 12 24 32 37.7 130 104 50.8 36.5~46.5 101.2 HY14-M8
HSK63A
CR12-160 2 12 24 32 42.4 160 134 50.8 36.5~46.5 131.2 HY14-M8
CR16-095 1 16 27 34 - 95 69 40.6 39.5~49.5 - HY18-M12
CR16-130 2 16 27 34 40.5 130 104 44.5 39.5~49.5 101.2 HY18-M12
CR16-160 2 16 27 34 45.2 160 134 44.5 39.5~49.5 131.2 HY18-M12
CR20-100 1 20 33 42 - 100 74 53.4 41.5~51.5 - HY18-M12
CR20-130 2 20 33 42 47.2 130 104 57.2 41.5~51.5 103.1 HY18-M12
CR20-160 2 20 33 42 48.8 160 134 57.2 41.5~51.5 133.1 HY18-M12
CR25-115 1 25 44 53 - 115 89 51.5 47.5~57.5 - HY25-M16
CR25-130 1 25 44 53 - 130 104 51.5 47.5~57.5 - HY25-M16
CR25-160 1 25 44 53 - 160 134 51.5 47.5~57.5 - HY25-M16
CR32-120 1 32 44 53 - 120 94 51.5 50.5~60.5 - HY25-M16
CR32-160 1 32 44 53 - 160 134 51.5 50.5~60.5 - HY25-M16
Applications / 應用

Drilling Reaming Endmilling
34 PARFAITE TOOL CO., LTD. 鑽孔 鉸孔 銑削
