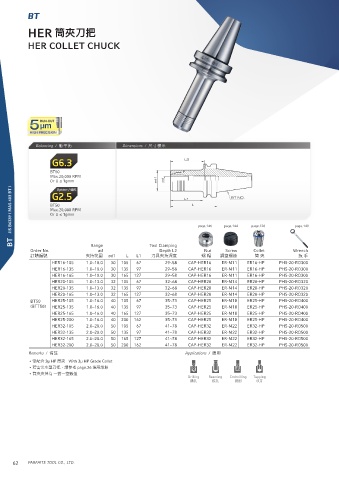

Page 64 - 普慧2020刀把(電子書版)

BT

HER 筒夾刀把

HER COLLET CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

BT50
Max.20,000 RPM
Or U ≤ 1gmm
BT JIS B6339 ( MAS 403 BT ) BT50 page.146 page.144 page.120 page.149

Max.20,000 RPM
Or U ≤ 1gmm

ød
Depth L2
Order No. Range Tool Clamping Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
HER16-105 1.0~10.0 30 105 67 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-135 1.0~10.0 30 135 97 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-165 1.0~10.0 30 165 127 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER20-105 1.0~13.0 32 105 67 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-135 1.0~13.0 32 135 97 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-165 1.0~13.0 32 165 127 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
BT50 HER25-105 1.0~16.0 40 105 67 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
(BTT50) HER25-135 1.0~16.0 40 135 97 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-165 1.0~16.0 40 165 127 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-200 1.0~16.0 40 200 162 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER32-105 2.0~20.0 50 105 67 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-135 2.0~20.0 50 135 97 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-165 2.0~20.0 50 165 127 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-200 2.0~20.0 50 200 162 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為 一對一整數值
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙

62 PARFAITE TOOL CO., LTD.
