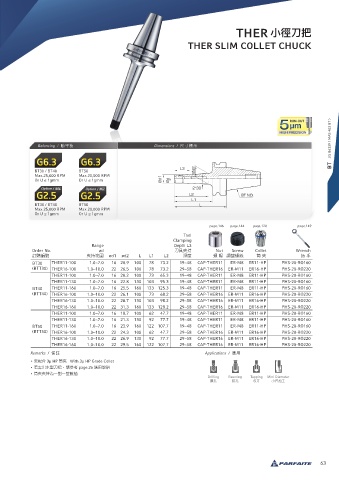

THER 小徑刀把
THER SLIM COLLET CHUCK
BT JIS B6339 ( MAS 403 BT )
Balancing / 動平衡 Dimensions / 尺寸標示
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
page.146 page.144 page.120 page.149
Tool
Clamping
Range Depth L3
Order No. ød 刀具夾持 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 ød2 L L1 L2 深度 螺 帽 調整螺絲 筒 夾 扳 手
BT30 THER11-100 1.0~7.0 16 20.9 100 78 73.2 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
(BTT30) THER16-100 1.0~10.0 22 26.5 100 78 73.2 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
THER11-100 1.0~7.0 16 20.2 100 73 65.3 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
THER11-130 1.0~7.0 16 22.8 130 103 95.3 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
BT40 THER11-160 1.0~7.0 16 25.5 160 133 125.3 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
(BTT40) THER16-100 1.0~10.0 22 26.1 100 73 68.2 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
THER16-130 1.0~10.0 22 28.7 130 103 98.2 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
THER16-160 1.0~10.0 22 31.3 160 133 128.2 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
THER11-100 1.0~7.0 16 18.7 100 62 47.7 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
THER11-130 1.0~7.0 16 21.3 130 92 77.7 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
BT50 THER11-160 1.0~7.0 16 23.9 160 122 107.7 19~48 CAP-THER11 ER-M8 ER11-HP PHS-20-RO160
(BTT50) THER16-100 1.0~10.0 22 24.3 100 62 47.7 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
THER16-130 1.0~10.0 22 26.9 130 92 77.7 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
THER16-160 1.0~10.0 22 29.5 160 122 107.7 29~58 CAP-THER16 ER-M11 ER16-HP PHS-20-RO220
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為一對一整數值
Drilling Reaming Tapping Mini Diameter
鑽孔 鉸孔 攻牙 小徑加工
63
