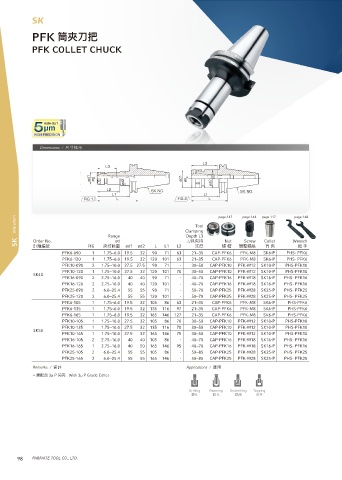

Page 100 - 2021刀把目錄

SK
SK

PFK ᒻ䄸ڏ಩

PFK COLLET CHUCK

Dimensions / 疳ੑ秂纈

SK DIN 69871 Order No. Range Clamping page.147 page.144 page.117 Wrench
page.148
Tool
Depth L3
ڏٍ䄸瞱
Nut
ød
Collet
Screw
窼ଶ
ᣪ ଌ
懪搳翥蒈
ᒻ 䄸
瞘 ಋ
ød1
63
1.75~6.0
PFK-M8
PFK6-090 FIG 1 䄸瞱塅瑻 19.5 ød2 90 L L1 L2 21~35 CAP-PFK6 藲碉ᣪ妟 SK6-P PHS- PFK6
71
32
PFK6-120 1 1.75~6.0 19.5 32 120 101 63 21~35 CAP-PFK6 PFK-M8 SK6-P PHS- PFK6
PFK10-090 2 1.75~10.0 27.5 27.5 90 71 - 30~50 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
PFK10-120 1 1.75~10.0 27.5 32 120 101 70 30~50 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
SK40
PFK16-090 2 2.75~16.0 40 40 90 71 - 40~70 CAP-PFK16 PFK-M18 SK16-P PHS- PFK16
PFK16-120 2 2.75~16.0 40 40 120 101 - 40~70 CAP-PFK16 PFK-M18 SK16-P PHS- PFK16
PFK25-090 2 6.0~25.4 55 55 90 71 - 50~70 CAP-PFK25 PFK-M28 SK25-P PHS- PFK25
PFK25-120 2 6.0~25.4 55 55 120 101 - 50~70 CAP-PFK25 PFK-M28 SK25-P PHS- PFK25
PFK6-105 1 1.75~6.0 19.5 32 105 86 63 21~35 CAP-PFK6 PFK-M8 SK6-P PHS-PFK6
PFK6-135 1 1.75~6.0 19.5 32 135 116 97 21~35 CAP-PFK6 PFK-M8 SK6-P PHS-PFK6
PFK6-165 1 1.75~6.0 19.5 32 165 146 127 21~35 CAP-PFK6 PFK-M8 SK6-P PHS-PFK6
PFK10-105 1 1.75~10.0 27.5 32 105 86 70 30~50 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
PFK10-135 1 1.75~10.0 27.5 32 135 116 70 30~50 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
SK50
PFK10-165 1 1.75~10.0 27.5 32 165 146 75 30~50 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
PFK16-105 2 2.75~16.0 40 40 105 86 - 40~70 CAP-PFK16 PFK-M18 SK16-P PHS- PFK16
PFK16-165 1 2.75~16.0 40 50 165 146 95 40~70 CAP-PFK16 PFK-M18 SK16-P PHS- PFK16
PFK25-105 2 6.0~25.4 55 55 105 86 - 50~85 CAP-PFK25 PFK-M28 SK25-P PHS- PFK25
PFK25-165 2 6.0~25.4 55 55 165 146 - 50~85 CAP-PFK25 PFK-M28 SK25-P PHS- PFK25
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ P ᒻ䄸 With 3µ P Grade Collet
Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

98
