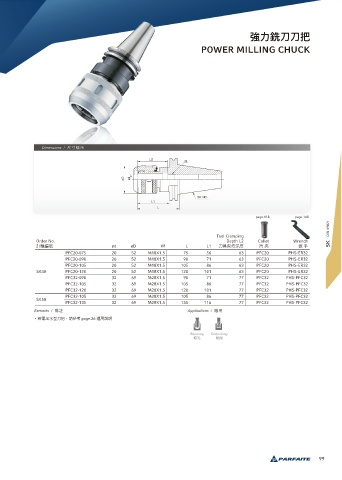

POWER MILLING CHUCK

Dimensions / 疳ੑ秂纈

page.118 page.148
SK DIN 69871

Tool Clamping
Order No. Depth L2 Collet Wrench
懪搳翥蒈 ød øD M L L1 ڏٍ䄸瞱窼ଶ ᒻ 䄸 瞘 ಋ
PFC20-075 20 52 M18X1.5 75 56 63 PFC20 PHS-ER32
PFC20-090 20 52 M18X1.5 90 71 63 PFC20 PHS-ER32
PFC20-105 20 52 M18X1.5 105 86 63 PFC20 PHS-ER32
SK40 PFC20-120 20 52 M18X1.5 120 101 63 PFC20 PHS-ER32
PFC32-090 32 69 M28X1.5 90 71 77 PFC32 PHS-PFC32
PFC32-105 32 69 M28X1.5 105 86 77 PFC32 PHS-PFC32
PFC32-120 32 69 M28X1.5 120 101 77 PFC32 PHS-PFC32
PFC32-105 32 69 M28X1.5 105 86 77 PFC32 PHS-PFC32
SK50
PFC32-135 32 69 M28X1.5 135 116 77 PFC32 PHS-PFC32
Remarks / 猋戢 Applications / 䛑አ
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก

Reaming Endmilling
柖৿ 柮獬

99
