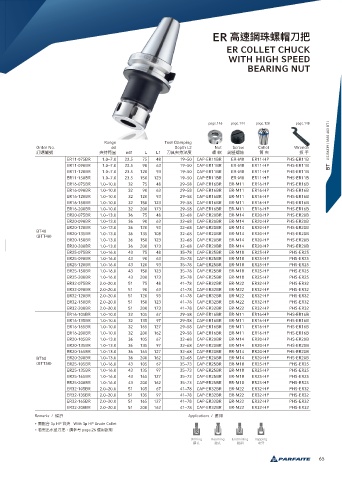

Page 67 - 2021刀把目錄

ER ṛ蝧桗ቐᣪଌڏ಩

ER COLLET CHUCK
WITH HIGH SPEED
BEARING NUT

page.146 page.144 page.120 page.148

Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench BT JIS B6339 ( MAS 403 BT )
懪搳翥蒈 䄸瞱塅瑻 ød1 L L1 ڏٍ䄸瞱窼ଶ ᣪ ଌ 藲碉ᣪ妟 ᒻ 䄸 瞘 ಋ
ER11-075BR 1.0~7.0 23.5 75 48 19~50 CAP-ER11BR ER-M8 ER11-HP PHS-ER11B
ER11-090BR 1.0~7.0 23.5 90 63 19~50 CAP-ER11BR ER-M8 ER11-HP PHS-ER11B
ER11-120BR 1.0~7.0 23.5 120 93 19~50 CAP-ER11BR ER-M8 ER11-HP PHS-ER11B
ER11-150BR 1.0~7.0 23.5 150 123 19~50 CAP-ER11BR ER-M8 ER11-HP PHS-ER11B
ER16-075BR 1.0~10.0 32 75 48 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-090BR 1.0~10.0 32 90 63 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-120BR 1.0~10.0 32 120 93 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-150BR 1.0~10.0 32 150 123 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-200BR 1.0~10.0 32 200 173 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER20-075BR 1.0~13.0 36 75 48 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER20-090BR 1.0~13.0 36 90 63 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER20-120BR 1.0~13.0 36 120 93 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
BT40
(BTT40) ER20-135BR 1.0~13.0 36 135 108 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER20-150BR 1.0~13.0 36 150 123 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER20-200BR 1.0~13.0 36 200 173 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER25-075BR 1.0~16.0 43 75 48 35~78 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-090BR 1.0~16.0 43 90 63 35~78 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-120BR 1.0~16.0 43 120 93 35~78 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-150BR 1.0~16.0 43 150 123 35~78 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-200BR 1.0~16.0 43 200 173 35~78 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER32-075BR 2.0~20.0 51 75 48 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-090BR 2.0~20.0 51 90 63 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-120BR 2.0~20.0 51 120 93 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-150BR 2.0~20.0 51 150 123 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-200BR 2.0~20.0 51 200 173 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER16-105BR 1.0~10.0 32 105 67 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-135BR 1.0~10.0 32 135 97 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-165BR 1.0~10.0 32 165 127 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER16-200BR 1.0~10.0 32 200 162 29~58 CAP-ER16BR ER-M11 ER16-HP PHS-ER16B
ER20-105BR 1.0~13.0 36 105 67 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER20-135BR 1.0~13.0 36 135 97 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
ER20-165BR 1.0~13.0 36 165 127 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
BT50 ER20-200BR 1.0~13.0 36 200 162 32~68 CAP-ER20BR ER-M14 ER20-HP PHS-ER20B
(BTT50) ER25-105BR 1.0~16.0 43 105 67 35~73 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-135BR 1.0~16.0 43 135 97 35~73 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-165BR 1.0~16.0 43 165 127 35~73 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER25-200BR 1.0~16.0 43 200 162 35~73 CAP-ER25BR ER-M18 ER25-HP PHS-ER25
ER32-105BR 2.0~20.0 51 105 67 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-135BR 2.0~20.0 51 135 97 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-165BR 2.0~20.0 51 165 127 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
ER32-200BR 2.0~20.0 51 200 162 41~78 CAP-ER32BR ER-M22 ER32-HP PHS-ER32
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ HP ᒻ䄸 With 3µ HP Grade Collet
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

65
