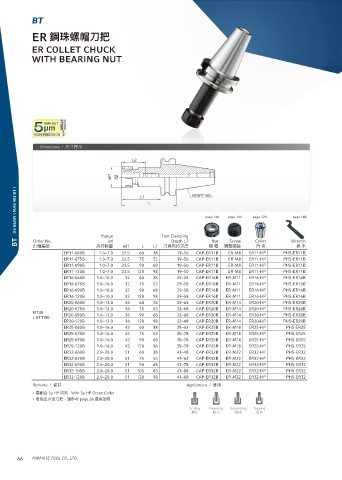

Page 68 - 2021刀把目錄

BT

ER 桗ቐᣪଌڏ಩

ER COLLET CHUCK
WITH BEARING NUT

Dimensions / 疳ੑ秂纈

BT JIS B6339 ( MAS 403 BT ) page.146 page.144 page.120 page.148

Range
Wrench
ød
Screw
Nut
Collet
Order No.
Depth L2
ڏٍ䄸瞱窼ଶ
ᒻ 䄸
懪搳翥蒈
ᣪ ଌ
瞘 ಋ
ød1
19~50
ER-M8
ER11-060B 䄸瞱塅瑻 23.5 60 L L1 Tool Clamping CAP-ER11B 藲碉ᣪ妟 ER11-HP PHS-ER11B
38
1.0~7.0
ER11-075B 1.0~7.0 23.5 75 53 19~50 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-090B 1.0~7.0 23.5 90 68 19~50 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-120B 1.0~7.0 23.5 120 98 19~50 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER16-060B 1.0~10.0 32 60 38 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-075B 1.0~10.0 32 75 53 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-090B 1.0~10.0 32 90 68 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-120B 1.0~10.0 32 120 98 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-060B 1.0~13.0 36 60 38 32~63 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-075B 1.0~13.0 36 75 53 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
BT30
( BTT30) ER20-090B 1.0~13.0 36 90 68 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-120B 1.0~13.0 36 120 98 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER25-060B 1.0~16.0 43 60 38 35~63 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-075B 1.0~16.0 43 75 53 35~78 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-090B 1.0~16.0 43 90 68 35~78 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-120B 1.0~16.0 43 120 98 35~78 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER32-060B 2.0~20.0 51 60 38 41~48 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-075B 2.0~20.0 51 75 53 41~63 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-090B 2.0~20.0 51 90 68 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-105B 2.0~20.0 51 105 83 41~88 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-120B 2.0~20.0 51 120 98 41~88 CAP-ER32B ER-M22 ER32-HP PHS-ER32
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ HP ᒻ䄸 With 3µ HP Grade Collet
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

66 PARFAITE TOOL CO., LTD.
