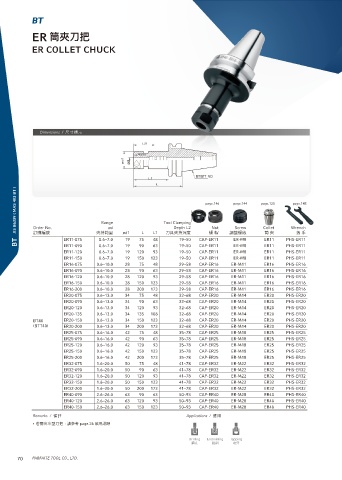

BT

ER ᒻ䄸ڏ಩

ER COLLET CHUCK

Dimensions / 疳ੑ秂纈

Dimensions / 疳ੑ秂纈

BT JIS B6339 ( MAS 403 BT ) Order No. 䄸瞱塅瑻 ød1 L L1 Tool Clamping page.146 藲碉ᣪ妟 page.120 Wrench

page.144
page.148

Range
Screw
Depth L2
Collet
Nut
ød
ᒻ 䄸
ᣪ ଌ
瞘 ಋ
ڏٍ䄸瞱窼ଶ
懪搳翥蒈
75
ER11-075
PHS-ER11
ER-M8
90
19
0.6~7.0
ER11
CAP-ER11
63
19~50
ER11-090
ER11-120 0.6~7.0 19 120 48 19~50 CAP-ER11 ER-M8 ER11 PHS-ER11
ER11
0.6~7.0
PHS-ER11
19
CAP-ER11
ER-M8
93
19~50
ER11-150 0.6~7.0 19 150 123 19~50 CAP-ER11 ER-M8 ER11 PHS-ER11
ER16-075 0.6~10.0 28 75 48 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-090 0.6~10.0 28 90 63 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-120 0.6~10.0 28 120 93 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-150 0.6~10.0 28 150 123 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-200 0.6~10.0 28 200 173 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER20-075 0.6~13.0 34 75 48 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-090 0.6~13.0 34 90 63 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-120 0.6~13.0 34 120 93 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-135 0.6~13.0 34 135 108 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
BT40 ER20-150 0.6~13.0 34 150 123 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
(BTT40) ER20-200 0.6~13.0 34 200 173 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER25-075 0.6~16.0 42 75 48 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-090 0.6~16.0 42 90 63 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-120 0.6~16.0 42 120 93 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-150 0.6~16.0 42 150 123 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-200 0.6~16.0 42 200 173 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER32-075 1.6~20.0 50 75 48 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-090 1.6~20.0 50 90 63 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-120 1.6~20.0 50 120 93 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-150 1.6~20.0 50 150 123 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-200 1.6~20.0 50 200 173 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER40-090 2.6~26.0 63 90 63 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
ER40-120 2.6~26.0 63 120 93 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
ER40-150 2.6~26.0 63 150 123 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
