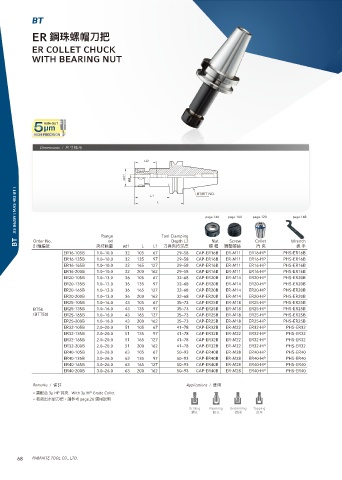

Page 70 - 2021刀把目錄

BT

ER 桗ቐᣪଌڏ಩

ER COLLET CHUCK
WITH BEARING NUT

Dimensions / 疳ੑ秂纈

BT JIS B6339 ( MAS 403 BT ) page.146 page.144 page.120 page.148

Range
Screw
ød
Depth L2
Nut
Collet
Wrench
Order No.
ڏٍ䄸瞱窼ଶ
瞘 ಋ
ᣪ ଌ
懪搳翥蒈
ᒻ 䄸
29~58
ER16-105B 䄸瞱塅瑻 ød1 105 L L1 Tool Clamping CAP-ER16B 藲碉ᣪ妟 ER16-HP PHS-ER16B
32
ER-M11
67
1.0~10.0
ER16-135B 1.0~10.0 32 135 97 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-165B 1.0~10.0 32 165 127 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-200B 1.0~10.0 32 200 162 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-105B 1.0~13.0 36 105 67 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-135B 1.0~13.0 36 135 97 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-165B 1.0~13.0 36 165 127 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-200B 1.0~13.0 36 200 162 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER25-105B 1.0~16.0 43 105 67 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25B
BT50 ER25-135B 1.0~16.0 43 135 97 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25B
(BTT50) ER25-165B 1.0~16.0 43 165 127 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25B
ER25-200B 1.0~16.0 43 200 162 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25B
ER32-105B 2.0~20.0 51 105 67 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-135B 2.0~20.0 51 135 97 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-165B 2.0~20.0 51 165 127 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-200B 2.0~20.0 51 200 162 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER40-105B 3.0~26.0 63 105 67 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-135B 3.0~26.0 63 135 97 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-165B 3.0~26.0 63 165 127 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-200B 3.0~26.0 63 200 162 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ HP ᒻ䄸 With 3µ HP Grade Collet
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

68 PARFAITE TOOL CO., LTD.
