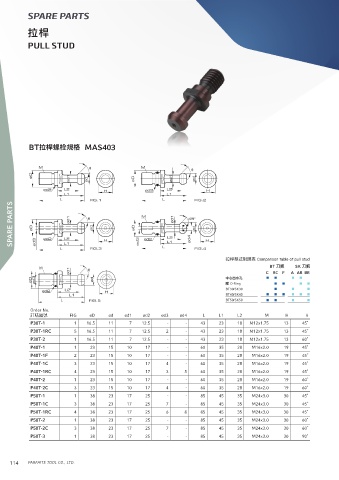

SPARE PARTS
拉桿
PULL STUD
BT拉桿螺栓規格 MAS403
SPARE PARTS
Order No.
訂購編號 FIG øD ød ød1 ød2 ød3 ød4 L L1 L2 M H θ
P30T-1 1 16.5 11 7 12.5 - - 43 23 18 M12x1.75 13 45°
P30T-1RC 5 16.5 11 7 12.5 2 - 43 23 18 M12x1.75 13 45°
P30T-2 1 16.5 11 7 12.5 - - 43 23 18 M12x1.75 13 60°
P40T-1 1 23 15 10 17 - - 60 35 28 M16x2.0 19 45°
P40T-1F 2 23 15 10 17 - - 60 35 28 M16x2.0 19 45°
P40T-1C 3 23 15 10 17 4 - 60 35 28 M16x2.0 19 45°
P40T-1RC 4 23 15 10 17 3 5 60 35 28 M16x2.0 19 45°
P40T-2 1 23 15 10 17 - - 60 35 28 M16x2.0 19 60°
P40T-2C 3 23 15 10 17 4 - 60 35 28 M16x2.0 19 60°
P50T-1 1 38 23 17 25 - - 85 45 35 M24x3.0 30 45°
P50T-1C 3 38 23 17 25 7 - 85 45 35 M24x3.0 30 45°
P50T-1RC 4 38 23 17 25 6 8 85 45 35 M24x3.0 30 45°
P50T-2 1 38 23 17 25 - - 85 45 35 M24x3.0 30 60°
P50T-2C 3 38 23 17 25 7 - 85 45 35 M24x3.0 30 60°
P50T-3 1 38 23 17 25 - - 85 45 35 M24x3.0 30 90°
114 PARFAITE TOOL CO., LTD.
