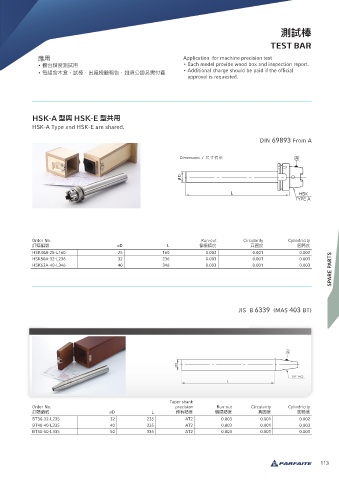

測試棒

TEST BAR

應用 Application for machine precision test
• 機台精度測試用 • Each model provide wood box and inspection report.
• 每組含木盒、試棒、出廠檢驗報告，如須公證另需付費 • Additional charge should be paid if the official
approval is requested.

HSK-A 型與 HSK-E 型共用
HSK-A Type and HSK-E are shared.

DIN 69893 From A

Dimensions / 尺寸標示

Order No. Run-out Circularity Cylindricity
訂購編號 øD L 偏擺精度 真圓度 圓筒度
HSK40A-25-L160 25 160 0.003 0.001 0.002
SPARE PARTS
HSK50A-32-L236 32 236 0.003 0.001 0.003
HSK63A-40-L346 40 346 0.003 0.001 0.003

JIS B 6339 (MAS 403 BT)

Taper shank
Order No. precision Run-out Circularity Cylindricity
訂購編號 øD L 錐柄精度 偏擺精度 真圓度 圓筒度
BT30-32-L235 32 235 AT2 0.003 0.001 0.002
BT40-40-L335 40 335 AT2 0.003 0.001 0.003
BT50-50-L335 50 335 AT2 0.003 0.001 0.003
