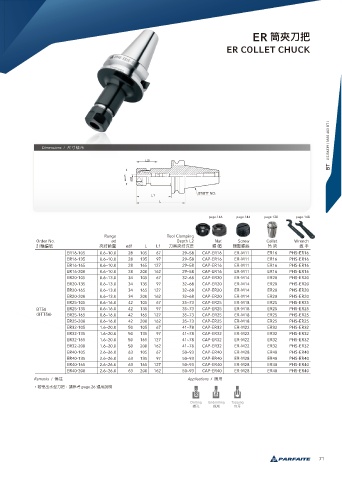

Page 73 - 2021刀把目錄

ER ᒻ䄸ڏ಩

ER COLLET CHUCK

BT JIS B6339 ( MAS 403 BT ) BT JIS B6339 ( MAS 403 BT )

Dimensions / 疳ੑ秂纈

page.146 page.144 page.120 page.148

Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
懪搳翥蒈 䄸瞱塅瑻 ød1 L L1 ڏٍ䄸瞱窼ଶ ᣪ ଌ 藲碉ᣪ妟 ᒻ 䄸 瞘 ಋ
ER16-105 0.6~10.0 28 105 67 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-135 0.6~10.0 28 135 97 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-165 0.6~10.0 28 165 127 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-200 0.6~10.0 28 200 162 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER20-105 0.6~13.0 34 105 67 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-135 0.6~13.0 34 135 97 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-165 0.6~13.0 34 165 127 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-200 0.6~13.0 34 200 162 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER25-105 0.6~16.0 42 105 67 35~73 CAP-ER25 ER-M18 ER25 PHS-ER25
BT50 ER25-135 0.6~16.0 42 135 97 35~73 CAP-ER25 ER-M18 ER25 PHS-ER25
(BTT50) ER25-165 0.6~16.0 42 165 127 35~73 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-200 0.6~16.0 42 200 162 35~73 CAP-ER25 ER-M18 ER25 PHS-ER25
ER32-105 1.6~20.0 50 105 67 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-135 1.6~20.0 50 135 97 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-165 1.6~20.0 50 165 127 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-200 1.6~20.0 50 200 162 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER40-105 2.6~26.0 63 105 67 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
ER40-135 2.6~26.0 63 135 97 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
ER40-165 2.6~26.0 63 165 127 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
ER40-200 2.6~26.0 63 200 162 50~93 CAP-ER40 ER-M28 ER40 PHS-ER40
Remarks / 猋戢 Applications / 䛑አ
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก

Drilling Endmilling Tapping
槑৿ 柮獬 硭粤
