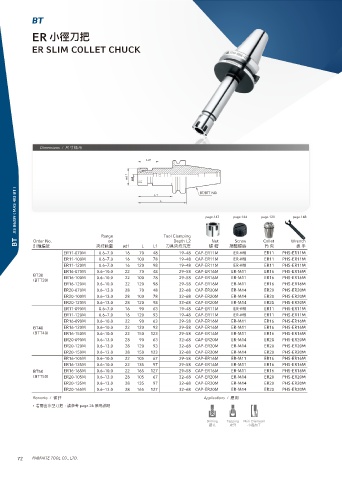

Page 74 - 2021刀把目錄

BT

ER ੜ䕩ڏ಩

ER SLIM COLLET CHUCK

Dimensions / 疳ੑ秂纈

BT JIS B6339 ( MAS 403 BT ) page.147 page.144 page.120 page.148

Range
Screw
ød
Depth L2
Nut
Wrench
Order No.
瞘 ಋ
ᒻ 䄸
ڏٍ䄸瞱窼ଶ
懪搳翥蒈
ᣪ ଌ
19~48
0.6~7.0
16
48
ER11-070M 䄸瞱塅瑻 ød1 70 L L1 Tool Clamping CAP-ER11M 藲碉ᣪ妟 Collet PHS-ER11M
ER-M8
ER11
ER11-100M 0.6~7.0 16 100 78 19~48 CAP-ER11M ER-M8 ER11 PHS-ER11M
ER11-120M 0.6~7.0 16 120 98 19~48 CAP-ER11M ER-M8 ER11 PHS-ER11M
ER16-070M 0.6~10.0 22 70 48 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
BT30 ER16-100M 0.6~10.0 22 100 78 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
(BTT30)
ER16-120M 0.6~10.0 22 120 98 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
ER20-070M 0.6~13.0 28 70 48 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER20-100M 0.6~13.0 28 100 78 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER20-120M 0.6~13.0 28 120 98 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER11-090M 0.6~7.0 16 90 63 19~48 CAP-ER11M ER-M8 ER11 PHS-ER11M
ER11-120M 0.6~7.0 16 120 93 19~48 CAP-ER11M ER-M8 ER11 PHS-ER11M
ER16-090M 0.6~10.0 22 90 63 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
BT40 ER16-120M 0.6~10.0 22 120 93 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
(BTT40) ER16-150M 0.6~10.0 22 150 123 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
ER20-090M 0.6~13.0 28 90 63 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER20-120M 0.6~13.0 28 120 93 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER20-150M 0.6~13.0 28 150 123 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER16-105M 0.6~10.0 22 105 67 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
ER16-135M 0.6~10.0 22 135 97 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
BT50 ER16-165M 0.6~10.0 22 165 127 29~58 CAP-ER16M ER-M11 ER16 PHS-ER16M
(BTT50) ER20-105M 0.6~13.0 28 105 67 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER20-135M 0.6~13.0 28 135 97 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
ER20-165M 0.6~13.0 28 165 127 32~68 CAP-ER20M ER-M14 ER20 PHS-ER20M
Remarks / 猋戢 Applications / 䛑አ
• 舙襑ڊ࿜ࣳڏ಩牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Tapping Mini Diameter
槑৿ 硭粤 ੜ䕩ےૡ

72 PARFAITE TOOL CO., LTD.
