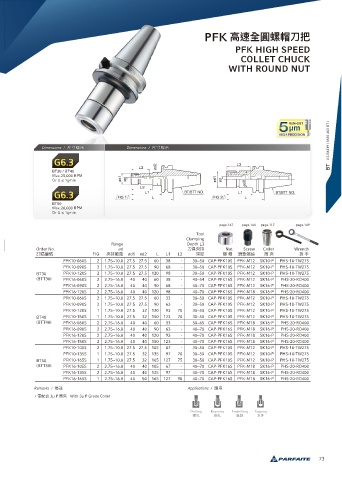

Page 75 - 2021刀把目錄

PFK ṛ蝧獊㾼ᣪଌڏ಩

PFK HIGH SPEED
COLLET CHUCK
WITH ROUND NUT

BT JIS B6339 ( MAS 403 BT )

Dimensions / 疳ੑ秂纈 Dimensions / 疳ੑ秂纈

BT30 / BT40
Max.25,000 RPM
Or U ≤ 1gmm

BT50
Max.20,000 RPM
Or U ≤ 1gmm

page.147 page.144 page.117 page.149
Tool
Clamping
Range Depth L3
Order No. ød ڏٍ䄸瞱 Nut Screw Collet Wrench
懪搳翥蒈 FIG 䄸瞱塅瑻 ød1 ød2 L L1 L2 窼ଶ ᣪ ଌ 藲碉ᣪ妟 ᒻ 䄸 瞘 ಋ
PFK10-060S 2 1.75~10.0 27.5 27.5 60 38 - 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
PFK10-090S 2 1.75~10.0 27.5 27.5 90 68 - 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
BT30 PFK10-120S 2 1.75~10.0 27.5 27.5 120 98 - 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
(BTT30) PFK16-060S 2 2.75~16.0 40 40 60 38 - 40~54 CAP-PFK16S PFK-M12 SK16-P PHS-20-RO400
PFK16-090S 2 2.75~16.0 40 40 90 68 - 40~70 CAP-PFK16S PFK-M12 SK16-P PHS-20-RO400
PFK16-120S 2 2.75~16.0 40 40 120 98 - 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK10-060S 2 1.75~10.0 27.5 27.5 60 33 - 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
PFK10-090S 2 1.75~10.0 27.5 27.5 90 63 - 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
PFK10-120S 1 1.75~10.0 27.5 32 120 93 70 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
BT40 PFK10-150S 1 1.75~10.0 27.5 32 150 123 70 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
(BTT40) PFK16-060S 2 2.75~16.0 40 40 60 33 - 50~65 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK16-090S 2 2.75~16.0 40 40 90 63 - 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK16-120S 2 2.75~16.0 40 40 120 93 - 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK16-150S 2 2.75~16.0 40 40 150 123 - 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK10-105S 2 1.75~10.0 27.5 27.5 105 67 - 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
PFK10-135S 1 1.75~10.0 27.5 32 135 97 70 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
BT50 PFK10-165S 1 1.75~10.0 27.5 32 165 127 75 30~50 CAP-PFK10S PFK-M12 SK10-P PHS-10-TW275
(BTT50) PFK16-105S 2 2.75~16.0 40 40 105 67 - 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK16-135S 2 2.75~16.0 40 40 135 97 - 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
PFK16-165S 1 2.75~16.0 40 50 165 127 90 40~70 CAP-PFK16S PFK-M18 SK16-P PHS-20-RO400
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ P ᒻ䄸 With 3µ P Grade Collet

Drilling Reaming Endmilling Tapping
槑৿ 柖৿ 柮獬 硭粤

73
